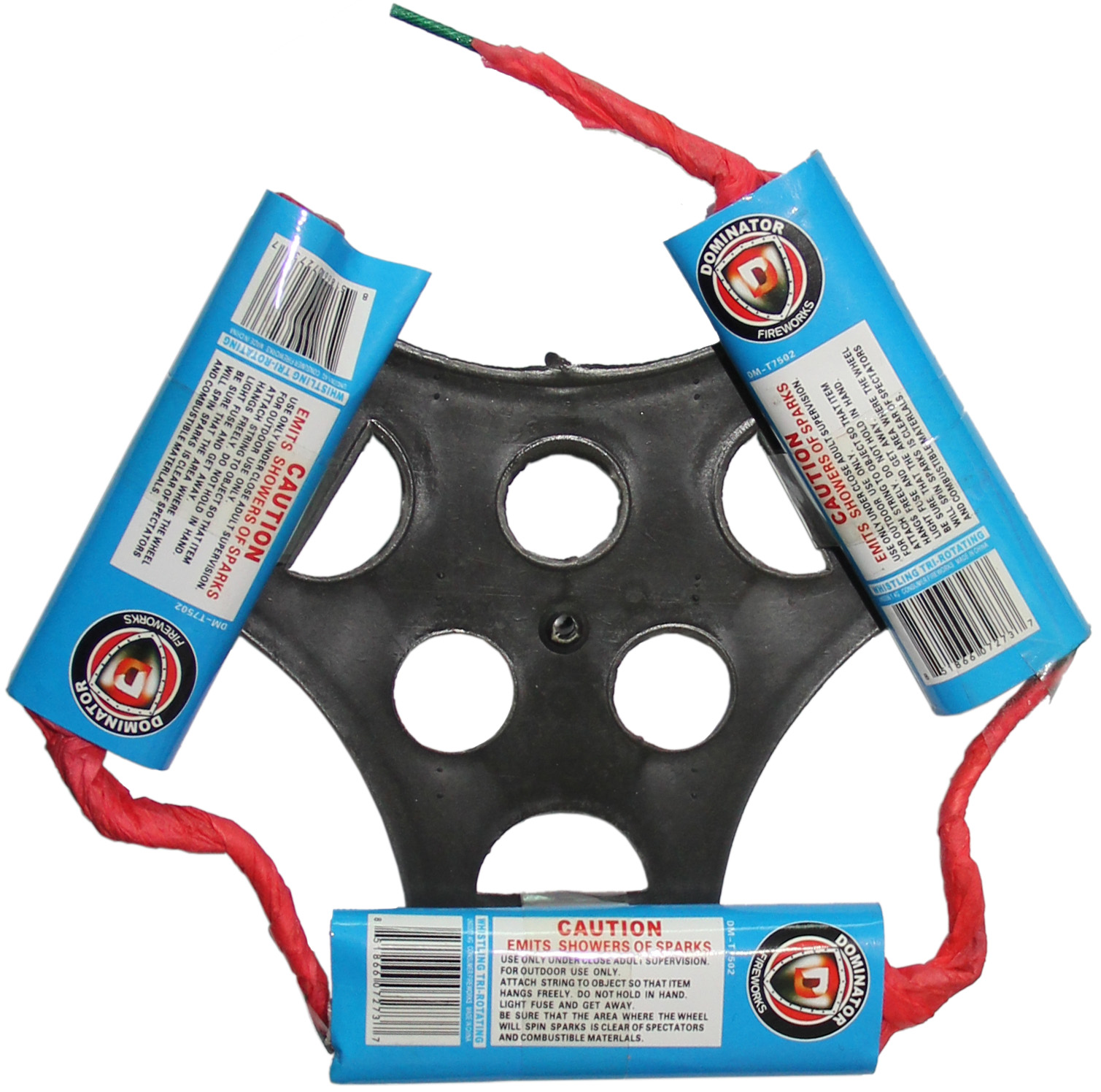

Description Add motion, sound, and color to your ground-level display with Whistling Tri-Rotating Wheel, a high-energy novelty spinner from Dominator Fireworks. This wheel-style firework features three rotating jets that ignite in sequence, producing rapid spinning action, vibrant color changes, and three distinct whistling effects. Mounted on a board or placed on a hard surface, it delivers a fast-paced performance that’s both exciting and easy to set up. As the jets fire, the wheel spins with increasing speed, releasing a series of whistles that build tension and delight the crowd. Each phase introduces a new color burst, creating a layered visual experience that complements the sound. The combination of rotation, whistle, and color makes this item a standout in the Spinners & Wheels category, especially for backyard parties, novelty assortments, and community events. Bright packaging and classic pinwheel styling enhance shelf appeal, making it an eye-catching addition to retail displays. Although often packaged in multi-packs for wholesale, Whistling Tri-Rotating Wheel is sold individually, allowing customers to mix and match with other novelty effects. Its compact size and simple ignition make it accessible for casual users while still delivering professional-grade excitement. This spinner is especially effective when paired with fountains or jumping jacks to create a dynamic ground show. Whether you’re curating a novelty section or building a themed bundle, Whistling Tri-Rotating Wheel offers reliable performance, strong visual impact, and crowd-pleasing sound. From spin to sparkle, it’s a firework that keeps the energy high and the audience engaged. Add it to your lineup and let the wheel do the talking. ⚠️ Always follow local laws and safety guidelines. Use only under adult supervision in approved outdoor areas. Click HERE to find a Fireworks City near you!! To learn more about Dominator Fireworks, click here.

Customize your product

  • Product Details
  • Specifications
  • Downloads
  • Drawings
  • Packing List
  • Others
  • Software

Mightex’s TCN/TCE-1304-U line camera is a cost-effective high-performance B/W line camera, based on a single-line, 3648-pixel CCD chip with USB2.0 (480 Mb/s) interface. CCD line cameras have several advantages over their area-array counterparts, including high optical linear resolution that allows systems developers to use the cameras to capture two-dimensional (2-D) images by moving the object or the CCD perpendicularly to the scan line. TCE-1304-U is a compact line-scan camera ideal for a variety of OEM applications such as industry process control, optical spectroscopy and bio-medical imaging etc.. Setting up the TCE-1304-U line camera is very easy: one simply needs to install the camera’s application software into any PC, and then connect the line camera to the PC using a USB cable. There is no need to install a DAC card or to use an external power supply.

TCN/TCE-1304-UW camera is the window-less version of TCN/TCE-1304-U, with the glass window removed from the image sensor. Therefore, the former is more sensitive to UV and is more suitable for applications that involve coherent light sources.

Features

  • USB2.0 interface
  • No external power supply required
  • Optical integration time adjustable from 0.1ms to 6.5s
  • 3648 pixel silicon linear CCD array
  • 8μm x 200μm pixel size
  • 16-Bit A/D converter
  • Scan rate up to 138 scans/second
  • External trigger capability
  • 4 GPIO pins
  • SDK for user applications
  • Demo software with GUI
  • Compatible to Windows 2000, XP, Vista, 7/8/10

Applications

  • Industrial Process Control
  • Optical Spectroscopy

Performance Specifications

ParameterSpecification
CCDToshiba TCD1304DG
Number of Pixels3648
Pixel Size8μm x 200μm
Spectral Range300nm to 1050nm
200nm to 1050nm (Windowless version)
Pixel Output Clock0.5 MHz
Data Storage on Camera4 Frames
ADC Resolution16 bits
External TriggerYes
Trigger CableACC-CAM-DIN8
Exposure Time Range0.1ms – 6,500ms
GPIOYes (4 programmable I/O’s)
Frame Rate138 scans/second*
Host InterfaceUSB 2.0

* Frame Rate is dependent on exposure time. When exposure time is set to 0.1ms, the camera can achieve 138 scans/second.

SDK Features

Operation SystemsWindows 2000, XP, Vista, Windows 7, 8/8.1, and 10
Minimum RequirementRAM > 64M; Available Hard Disk Space > 10M
USB PortUSB2.0
Multiple CamerasSupported
Device DriverYes
Demo ApplicationYes
Library FilesYes (DLL files and Static Library file)
Example CodesYes (VC++ and Delphi)
Frame Attributes*Exposure Time, Time Stamp, Trigger Event Count, Over Exposure Detection.

* SDK will provide call back, which will send user Frame data and the related attributes of this frame, the attributes include: Exposure time, Time Stamp, Trigger Event Count and Over Exposure Flag.



Standard Packing List:

  1. 1x CCD Line Camera (w/o an imaging lens)
  2. 1x USB Cable (Note: Trigger cable ACC-CAM-DIN8 is NOT included and needs to be ordered separately)
  3. 1x CD (containing User’s Guide, SDK Manual, Windows-based application software with GUI, and example codes in VB, C++ and Delphi)

Software Download:

CCD Line Camera F-Mount Lens Adapter (P/N: ACC-LCM-F)

  1. Download ACC-LCM-F installation drawing (.pdf, 51.8kb);
  2. ACC-LCM-F lens adapter photograph

CCD Line Camera Spectral Response

Application Software GUI
